Super User Maxximus Redneckus Posted October 20, 2023 Super User Posted October 20, 2023 I bought a shimano 100dsv citica again this one has a clip at the end of the spool shaft..does this serve a purpose other then holding the spool in when open it ?? TIA Quote
shackman Posted October 20, 2023 Posted October 20, 2023 Yes the purpose of it is to keep the spool from falling out when adjusting centrifugal brakes. It’s actually in the handle side plate and the spool shaft has a groove in which it sits. 1 Quote
Super User Maxximus Redneckus Posted October 21, 2023 Author Super User Posted October 21, 2023 Thks im taking it out easier to service that way have a great weekend 1 Quote
Delaware Valley Tackle Posted October 21, 2023 Posted October 21, 2023 It’s also a spacer for the spool bearing. You need to keep it in place. 2 Quote
garroyo130 Posted October 21, 2023 Posted October 21, 2023 Any pictures? Because I have no idea what "clip" this is referring to ... Quote
Super User Maxximus Redneckus Posted October 21, 2023 Author Super User Posted October 21, 2023 16 hours ago, Delaware Valley Tackle said: It’s also a spacer for the spool bearing. You need to keep it in place. Hows a spring clip a spacer? it has 2 plastic spacers already outside the bearing all it does is stop the spool from falling out i assumed ..spool moves in and out and has bearings for 360 non movement other then rotation Quote

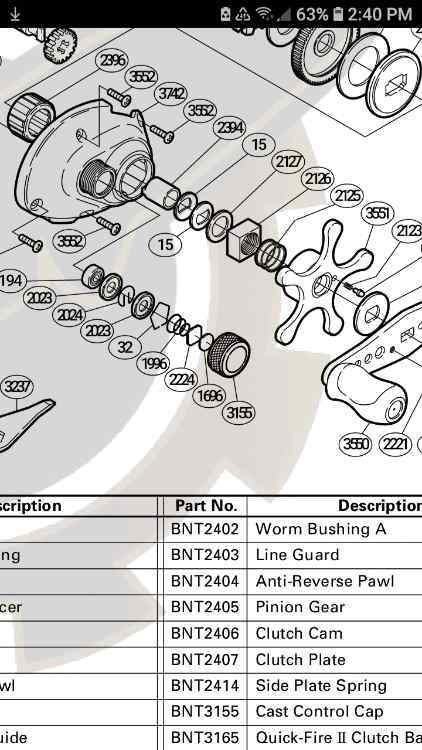

garroyo130 Posted October 21, 2023 Posted October 21, 2023 Thanks for the pic. Hadn't seen a design like that. Must be unique to the 100 as the 200s dont have that. 1 Quote
Delaware Valley Tackle Posted October 21, 2023 Posted October 21, 2023 4 hours ago, Stale KracKer said: Hows a spring clip a spacer? it has 2 plastic spacers already outside the bearing all it does is stop the spool from falling out i assumed ..spool moves in and out and has bearings for 360 non movement other then rotation I was referring to the assembly as a whole. Technically, yes you can lose the clip (bnt2024) and use the reel. 1 Quote
Super User Maxximus Redneckus Posted October 22, 2023 Author Super User Posted October 22, 2023 1 hour ago, Delaware Valley Tackle said: I was referring to the assembly as a whole. Technically, yes you can lose the clip (bnt2024) and use the reel. Thks reason i was wondering cause all my others ones didnt have this even the curado 100s i was thinking hmmm what else could i be missing 5 hours ago, garroyo130 said: Thanks for the pic. Hadn't seen a design like that. Must be unique to the 100 as the 200s dont have that. Ya now u mention it i looked at my 200s and nope a slightly diff design..man i love this little shimanos though this last 100 i won on ebay for 40$ like new no box but they fit my hands soo well..have a great eve Quote
zell_pop1 Posted October 27, 2023 Posted October 27, 2023 Always love the 100 DSV as well, had a few of them. Quote
