@MickD posted the set of instructions for the repairs...this is pretty much what I have followed for years.
One thing I want to point out is in red and bold in this section...
Number 2. The break shown last time was in an area that will not see much flexure or bending. Under heavy load, the rod at this point will be mostly straight, except when casting the line. The act of casting is probably the peak load that this repair will ever see. As we go further up the rod the bending becomes more severe. The break in No. 2 is about 14 inches from the tip. The bending moment is more pronounced in this area. Your sleeve needs to be slightly longer in order to accommodate the longer moment arm and slightly stiffer sections being joined. So increase the length of this sleeve to about 1 & 1/2 inch to 1 & 3/4 inch over all, which will mean that about 5/8 to 3/4 of an inch on each end will be structure. Don't forget the tapered ends. The bend moment on this area will be quite severe. Maybe enough for the graphite sections to rupture the low modulus sleeve even though it is wrapped and coated. To counter this shearing force, we will install a very small piece of either fiberglass or graphite on the INSIDE. This piece must fit snugly, and be about 1/4 inch long. If it is any longer it will be involved in the bending force and we don't want that. Be sure that this piece is in place before you position the outer sleeve. When the adhesive is cured, the sleeve is cleaned up and wrapped and finished like any guide or ferrule. Grasp the rod about a foot on each side of the repair sleeve and bend it into an arc with the repair in the center of the arc. The arc should be constant - no noticeable flat spot at the sleeve location. If there is a noticeable flat spot, then your sleeve is either too long or too heavy, i.e., too thick a wall section.
I have to believe that this is a typo...1/4 inch for an inside stint is way too short.

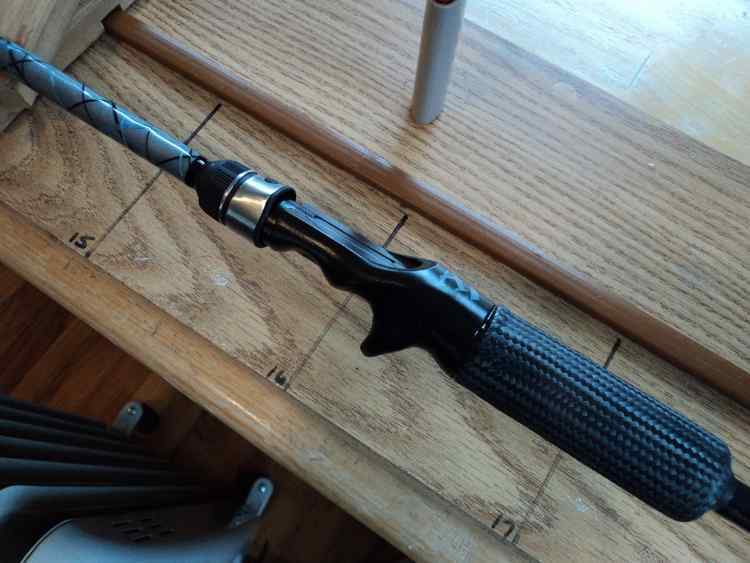

Looking at the photo(#3) as it sits...if the outer sleeve is 2 inches...the inner sleeve looks to be at least 1.5 inches.
