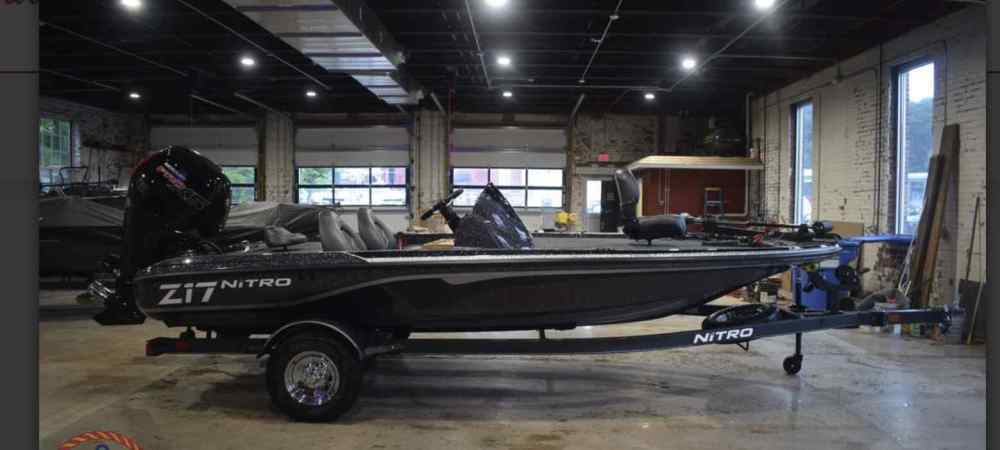

Wiring the Z17

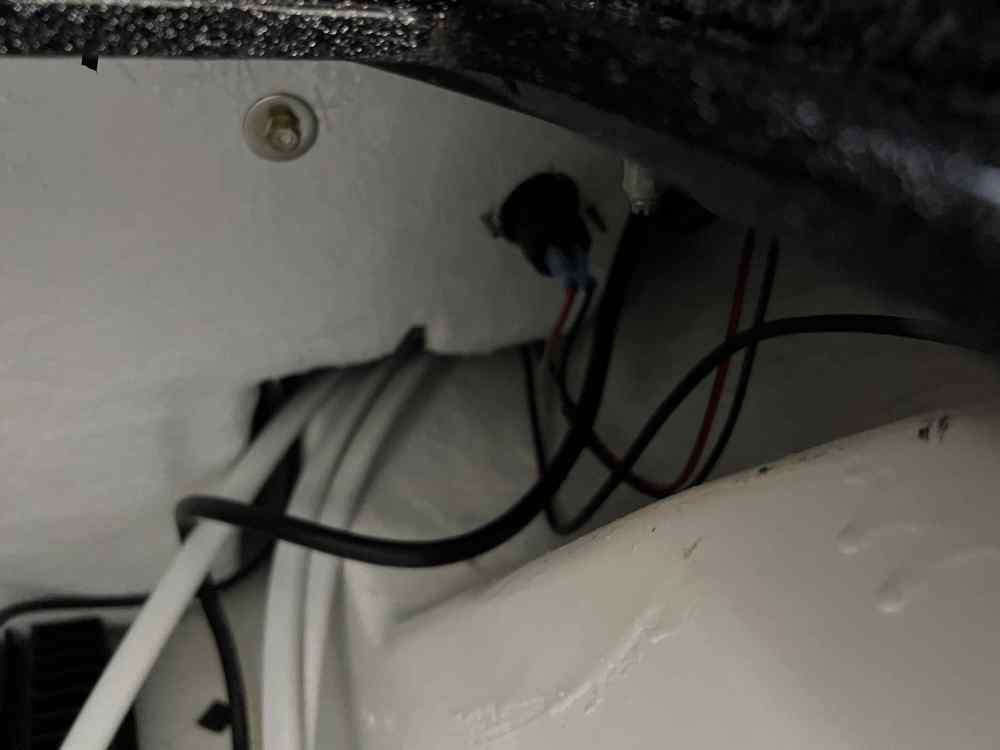

Snake the power and finder and network cables thru the gun wales. Don’t try the the keel, it’s to narrow.
From console to the back. Easy with a fiberglass snake.
3 - 8 gauge power duplex wires and 2 transducer cables.
2 from bow to stern.
1 network cable from the console to the stern with a network jumper. All Garmin, Live scope, 2 - 102. 1 - 106 and a 93 Ultra.
Drill a 1.5” hole thru the console in-line with forward of the factory hole. , snake to the bow and stern.
